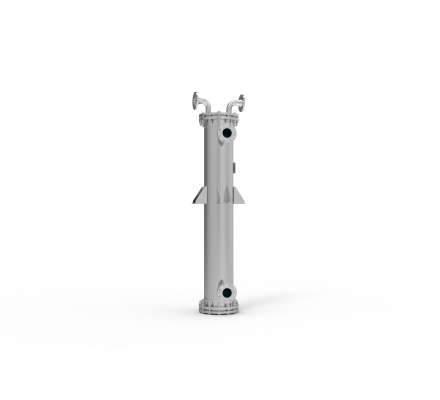

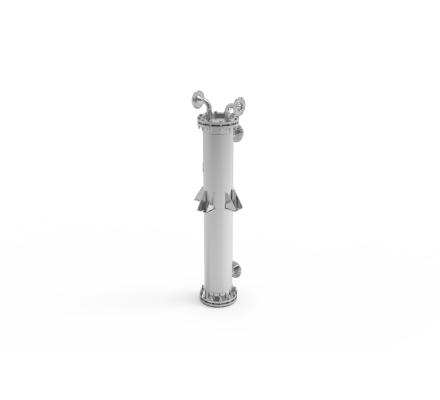

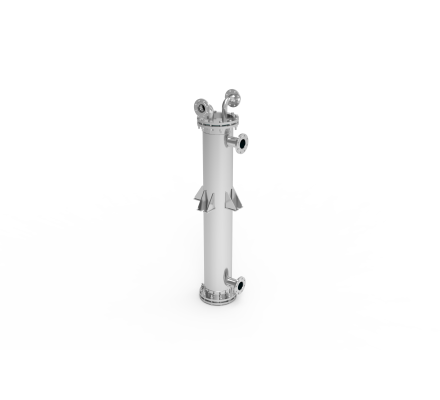

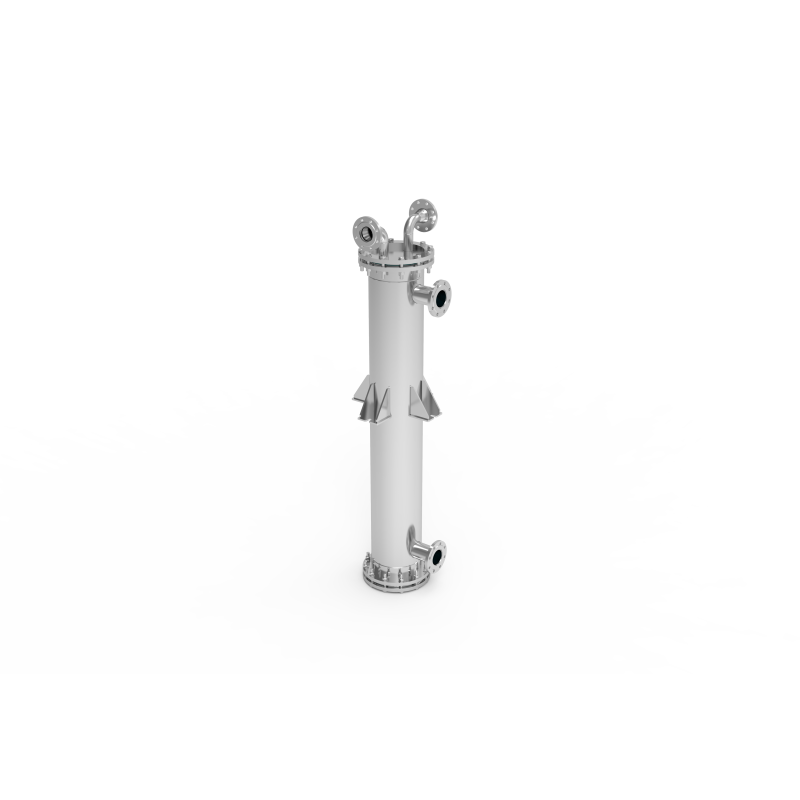

Heat Exchanger ТО 01.252
Heat Capacity (kW)
318
Volume of the cavity (L)
6,7
Material
Stainless steel AISI304, AISI321, AISI316
Working pressure (MPa)
1,0
Weight (kg)
66
Surface area (m²)
1,07
Connection
Фланцеве DN 25 мм, PN 1,0 МПа, DIN 2576
Inter-tube volume (L)
5,2
Heat carrier flow rate (kg/h)
1669
Coolant flow rate (kg/h)
8075
137 000 грн
137 000 грн
- Video review
- Description
- Specification
Shell-and-Tube Heat Exchangers – reliable and efficient heat exchange devices used in industries to transfer thermal energy between two media. The products of LLC "KYIVPROMTECHSERVICE" comply with international standards ISO 9001, ISO 14001, ISO 45001, ensuring high quality, durability, and operational safety.
Advantages:
- High efficiency – ensures maximum heat transfer with minimal losses
- Reliability and durability – made from materials resistant to corrosion and high temperatures
- Custom design – possibility of manufacturing according to unique customer specifications
- Resistance to loads – operates under high pressure and in aggressive environments
- Quality guarantee – production control at all stages
Contact us for consultation and orders
| Heat Capacity (kW): | 318 |
| Volume of the cavity (L): | 6,7 |
| Material: | Stainless steel AISI304, AISI321, AISI316 |
| Working pressure (MPa): | 1,0 |
| Weight (kg): | 66 |
| Surface area (m²): | 1,07 |
| Connection: | Фланцеве DN 25 мм, PN 1,0 МПа, DIN 2576 |
| Inter-tube volume (L): | 5,2 |
| Heat carrier flow rate (kg/h): | 1669 |
| Coolant flow rate (kg/h): | 8075 |
