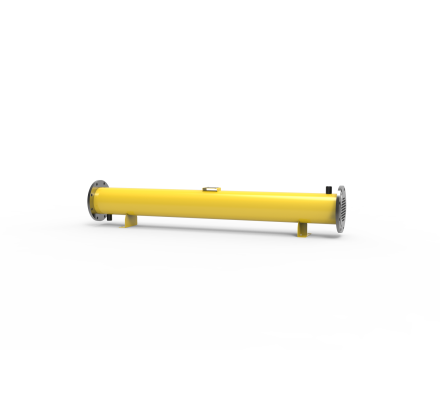

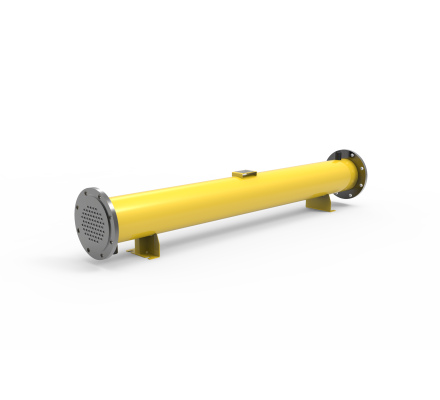

Heat Exchanger ТО 01.224
Heat Capacity (kW)
664
Volume of the cavity (L)
8,3
Material
Structural steel
Working pressure (MPa)
1,0
Weight (kg)
145
Surface area (m²)
1,23
Connection
Фланцеве DN 25 мм, PN 1,0 МПа, DIN 2576
Inter-tube volume (L)
6,04
Heat carrier flow rate (kg/h)
2053
Coolant flow rate (kg/h)
15887
93 000 грн
93 000 грн
- Video review
- Description
- Specification
Shell-and-Tube Heat Exchangers – reliable and efficient heat exchange devices used in industries to transfer thermal energy between two media. The products of LLC "KYIVPROMTECHSERVICE" comply with international standards ISO 9001, ISO 14001, ISO 45001, ensuring high quality, durability, and operational safety.
Advantages:
- High efficiency – ensures maximum heat transfer with minimal losses
- Reliability and durability – made from materials resistant to corrosion and high temperatures
- Custom design – possibility of manufacturing according to unique customer specifications
- Resistance to loads – operates under high pressure and in aggressive environments
- Quality guarantee – production control at all stages
Contact us for consultation and orders
| Heat Capacity (kW): | 664 |
| Volume of the cavity (L): | 8,3 |
| Material: | Structural steel |
| Working pressure (MPa): | 1,0 |
| Weight (kg): | 145 |
| Surface area (m²): | 1,23 |
| Connection: | Фланцеве DN 25 мм, PN 1,0 МПа, DIN 2576 |
| Inter-tube volume (L): | 6,04 |
| Heat carrier flow rate (kg/h): | 2053 |
| Coolant flow rate (kg/h): | 15887 |
