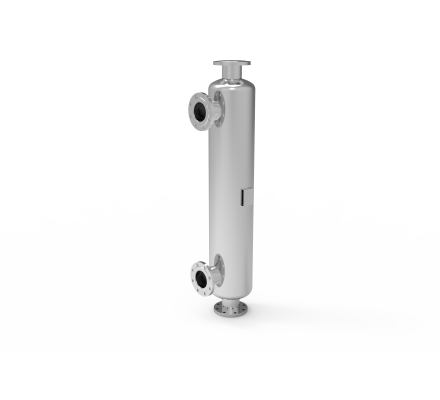

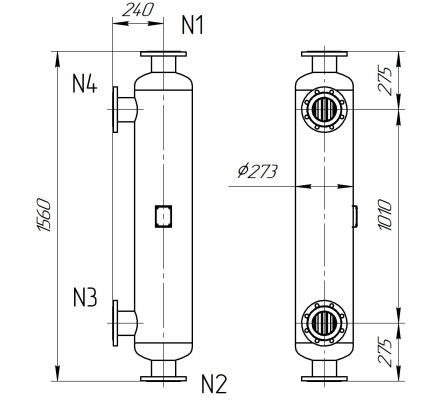

Heat Exchanger WSH-216
Heat Capacity (kW)
2372
Volume of the cavity (L)
27,6
Working pressure (MPa)
1,0
Weight (kg)
117,8
Surface area (m²)
6,35
Connection
Flanged DN 100 мм, PN 1,0 МПа, DIN 2576
Inter-tube volume (L)
41,3
Heat carrier flow rate (kg/h)
4237
Coolant flow rate (kg/h)
102021
15 000 грн
15 000 грн
- Video review
- Description
- Specification
The WSH-216 heat exchanger from LLC "KYIVPROMTECHSERVICE" is designed for efficient heat exchange in industrial, commercial, and engineering systems. The product is manufactured according to proprietary technical specifications (TU) and complies with international ISO standards, ensuring high quality, reliability, and durability.
Advantages:
- High heat exchange efficiency
- Resistance to high temperatures and pressure
- Reliable welded construction
- Custom manufacturing with parameter adjustment options
- Compliance with international standards
Applications:
- Heating and ventilation systems
- Industrial heat exchange equipment
- Technological processes in the food, chemical, and other industries
- Heat recovery and energy-efficient solutions
Contact us for consultation or to place an order!
| Heat Capacity (kW): | 2372 |
| Volume of the cavity (L): | 27,6 |
| Working pressure (MPa): | 1,0 |
| Weight (kg): | 117,8 |
| Surface area (m²): | 6,35 |
| Connection: | Flanged DN 100 мм, PN 1,0 МПа, DIN 2576 |
| Inter-tube volume (L): | 41,3 |
| Heat carrier flow rate (kg/h): | 4237 |
| Coolant flow rate (kg/h): | 102021 |
