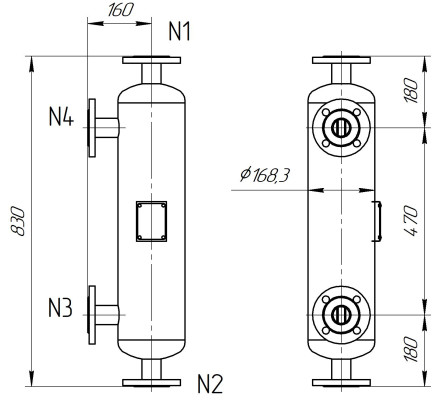

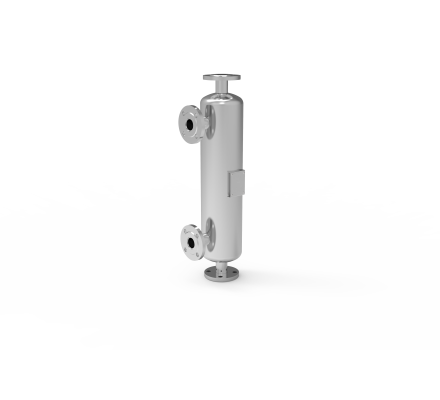

Heat Exchanger WSH-109
Heat Capacity (kW)
375
Volume of the cavity (L)
5
Working pressure (MPa)
1,0
Weight (kg)
32,4
Surface area (m²)
1,04
Connection
Flanged DN 40 mm, PN 1.0 MPa, DIN 2576
Inter-tube volume (L)
7,1
Heat carrier flow rate (kg/h)
670
Coolant flow rate (kg/h)
6451
9 000 грн
9 000 грн
- Video review
- Description
- Specification
The WSH-109 heat exchanger from LLC "KYIVPROMTECHSERVICE" is designed for efficient heat exchange in industrial, commercial, and engineering systems. The product is manufactured according to proprietary technical specifications (TU) and complies with international ISO standards, ensuring high quality, reliability, and durability.
Advantages:
- High heat exchange efficiency
- Resistance to high temperatures and pressure
- Reliable welded construction
- Custom manufacturing with parameter adjustment options
- Compliance with international standards
Applications:
- Heating and ventilation systems
- Industrial heat exchange equipment
- Technological processes in the food, chemical, and other industries
- Heat recovery and energy-efficient solutions
Contact us for consultation or to place an order!
| Heat Capacity (kW): | 375 |
| Volume of the cavity (L): | 5 |
| Working pressure (MPa): | 1,0 |
| Weight (kg): | 32,4 |
| Surface area (m²): | 1,04 |
| Connection: | Flanged DN 40 mm, PN 1.0 MPa, DIN 2576 |
| Inter-tube volume (L): | 7,1 |
| Heat carrier flow rate (kg/h): | 670 |
| Coolant flow rate (kg/h): | 6451 |
